M2810Z6
M2810Z6
Scale-Out Compute in a Compact 2U design

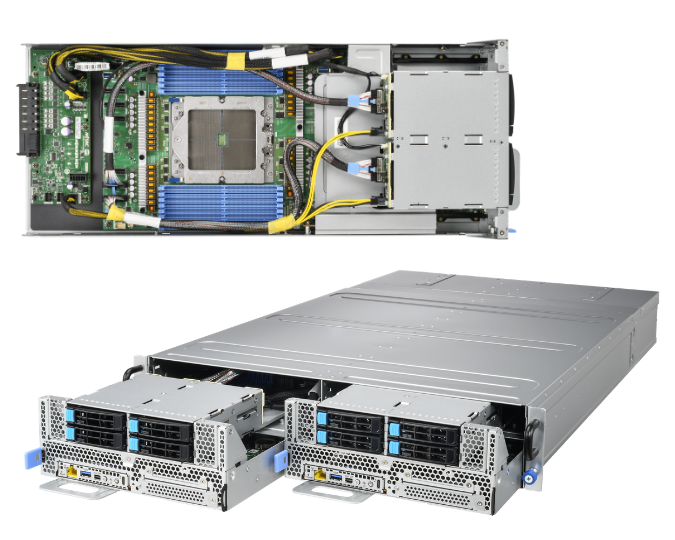

The M2810Z6 is a 2U 2-node server platform powered by AMD EPYC™ 9006 processors, delivering up to 512 cores per chassis for cloud, virtualization, and HPC workloads. Each node supports 16-channel DDR5 memory with up to 4TB capacity for demanding scale-out infrastructure.
Designed for deployment flexibility, the M2810Z6 offers multiple front-access NVMe storage configurations across U.2, E1.S, and E3.S form factors, with DC-SCM 2.0 management for modern data center deployments.
Key Features:
High-Density 2U2N Compute
Packs two independent compute nodes into a compact 2U chassis, delivering up to 512 cores per chassis for cloud, virtualization, and HPC workloads
AMD EPYC™ 9006 Processor
Powered by one AMD EPYC™ 9006 processor per node with up to 256 cores, providing high compute performance for demanding scale-out workloads.
High-Bandwidth DDR5 Memory
Supports (16) DDR5-8000 RDIMM slots and up to 4TB memory per node, providing high memory bandwidth for compute-intensive workloads
Flexible NVMe Storage
Offers multiple front-access NVMe configurations across U.2, E1.S, and E3.S form factors, enabling deployment flexibility for diverse workload requirements.
Enterprise-Ready Management
Features DC-SCM 2.0 with AST2700 BMC and AST1060 Root of Trust for secure, standards-based server management
Redundant 2,700W Titanium PSU
Equipped with (1+1) redundant 2,700W hot-swappable 80 PLUS® Titanium power supplies for high availability and power efficiency.
Applications
Cloud Computing
Virtualization
High-Performance Computing
