EOL

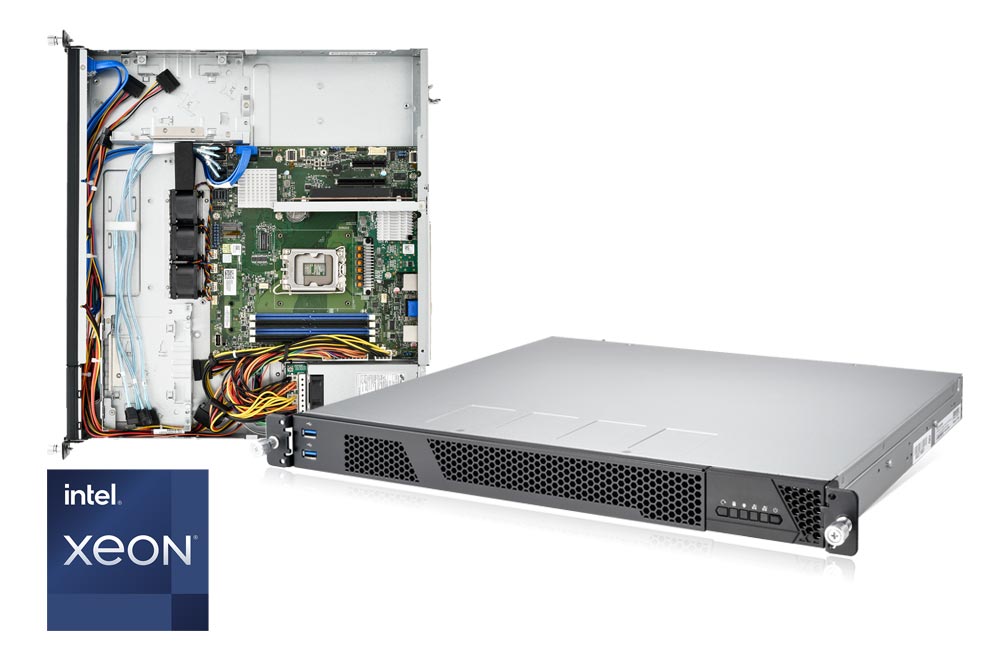

GX40B5573
1U1S Cloud Server, 2 LFF + 2 SFF (internal)
- 1S Intel Xeon E-2400 (Raptor Lake-E) CPU with up to 95W TDP
- 4 UDIMM slots with DDR5 4800 memory support
- 1 FH/HL PCIe 5.0 x16 slot
- 2 sets of stacked 2.5" (lower) + 3.5" (upper) internal drive bays
- 2 NVMe M.2 22110/2280 slots
- 2 25GbE SFP28, 1 GbE and 1 GbE dedicated IPMI LAN ports
- 1 300W single PSU, 80+ Gold
| SKU | Processor Brand | CPUs | CPU Type | Cooling Type | Form Factor | DIMM Slots | PCIe Slots |
|---|---|---|---|---|---|---|---|
| B5573G40V4-2V-HE* | Intel | 1 | Intel Xeon 6300/E-2400 Series Processors | Air | 1U | 4 | 1 |
| B5573G40V4-HE* | Intel | 1 | Intel Xeon 6300/E-2400 Series Processors | Air | 1U | 4 | 1 |
Specifications
System
- Form Factor
- 1U Rackmount
- Dimension (D x W x H)
- 16.1" x 19" x 1.75" (400 x 438.5 x 43.2mm)
- Chassis Model
- GX40
- Motherboard Name
- S5573GM3NR-2V-HE
- Board Dimension
- µATX 9.6" x 9.6" (243.8 x 243.8mm)
- Gross Weight
- Net weight
Processor
- Q'ty / Socket Type
- (1) Intel Socket LGA1700
- Supported CPU Series
- Intel Xeon 6300/E-2400 Series Processors Intel Pentium G7400/G7400T Processors
- Thermal Design Power Wattage
- Max up to 95W (TDP)
Memory
- Supported DIMM Qty
- (4) DIMM slots
- DIMM Type / Speed
- UDIMM DDR5 4400 MT/s (1DPC) UDIMM DDR5 3600 MT/s (2DPC)
- Capacity
- Up to 128GB UDIMM DDR5-4800 memory
- Memory channel
- (2) Channels per CPU
- Memory voltage
- 1.1V
Chipset
- Peripheral Controller
- C266 PCH
Storage
- Internal (# / Interface)
- (2) 3.5" + (2) 2.5" drive bays (2) NVMe M.2 2280/22110 slots (PCIe Gen 3 x4)
- RAID Level (SATA)
- RAID 0/1/10/5 (Intel RSTe)
PCIe Expansion Slots
- PCIe
- (1) PCIe Gen 5 x16 slot (FH/HL)
Rear Panel
- Buttons
- (1) UID
Rear I/O Ports
- USB
- (2) USB 3.2 Gen 1 + (2) USB 2.0 ports
- VGA
- (1) D-sub 15-pin port
- RJ-45 (Data)
- (1) GbE port
- DP
- (1) DB-9 COM port
- RJ-45 (IPMI)
- (1) GbE port dedicated for IPMI
- SFP28
- (2) 25GbE ports (on M5573-B502-2V mezz.)
Front Panel
- Buttons
- (1) PWR / (1) RST
Networking
- Controller
- (1) Broadcom BCM57502 + (1) Intel i210-AT
- PHY
- Realtek RTL8211FD-CG
Front I/O Ports
- USB
- (2) USB 3.2 Gen 1 port
TPM (Optional)
- TPM Support
- Please refer to our TPM supported list.
- Interface
- SPI
Power Supply
- Type
- Flex ATX
- Input Range
- AC 100-240V/6-3A
- Frequency
- 50-60 Hz
- Output Watts
- 300 Watts
- Efficiency
- 80 plus Gold
- Redundancy
- -
Cooling
- Air
- (3) 4028 cabled fans
System Monitoring
- Chipset
- Aspeed AST2600
- Temperature
- Monitors temperature for CPU & memory & system environment
- Voltage
- Monitors voltage for CPU, memory, chipset & power supply
- LED
- Over temperature warning indicator / Fan & PSU fail LED indicator
BIOS
- Brand / ROM size
- AMI / 32MB
- Feature
- Hardware Monitor/ FAN speed control automatic/ Boot from USB device/ PXE via LAN/Storage / Console Redirection/ SMBIOS 3.7/ PnP/ Wake on LAN/ ACPI 6.5/ ACPI sleeping states S0, S5
Server Management
- Chipset
- Aspeed AST2600
- AST2600 iKVM Feature
- 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
- AST2600 IPMI Feature
- IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
Operating Environment
- Operating Temp.
- 10° C ~ 35° C (50° F~ 95° F)
- Non-operating Temp.
- -40° C ~ 70° C (-40° F ~ 158° F)
- In/Non-operating Humidity
- 85% (Operating humidity) 90% (Non-operating Humidity)
Graphic (VGA)
- Connector type
- D-Sub 15-pin
- Resolution
- Up to 1920x1200
- Chipset
- Aspeed AST2600
Regulation
- FCC/IC
- Class A
- CE
- Class A
- RCM
- Class A
- CB/LVD
- Yes
- VCCI
- Class A
- BSMI
- Class A
OS Compatibility
- OS supported list
- Please refer to our compatibility support lists
RoHS
- RoHS 2.0
- Yes
Package Contains
- Barebone
- (1) B5573G40V4-2V-HE Barebone
- Manual
- (1) Quick Installation Guide
- Others
- (1) M.2 Card Latch (1) CPU Heatsink (1) Sliding Rail Kit (1) Power Cord (C13) (1) Power Cord (CEE7)
