MiTAC Computing
EOL

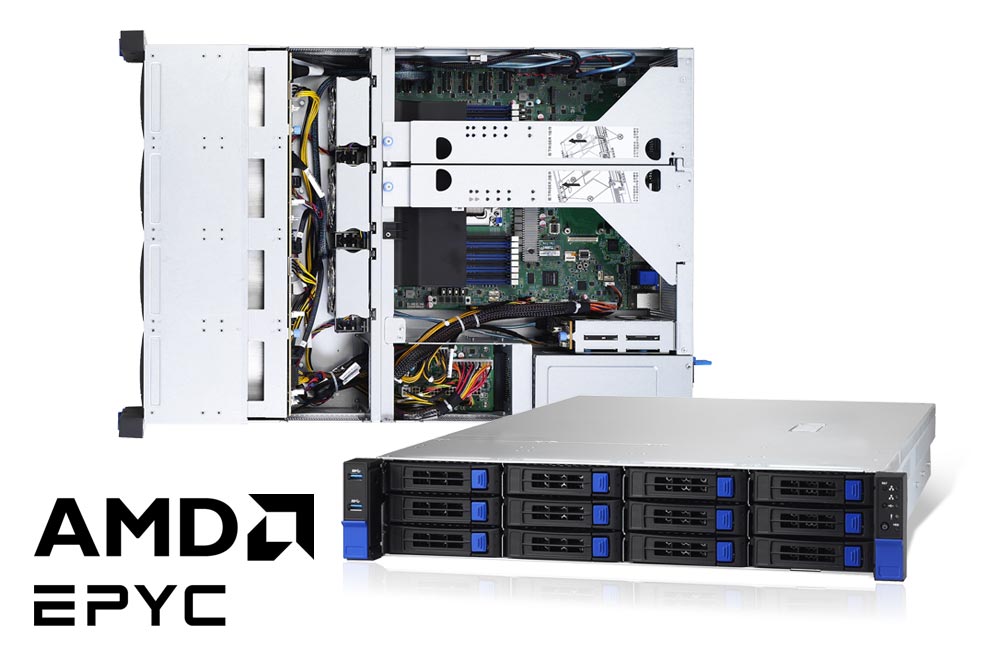

TS65B8036

B8036T65V12E2HR-LE

  • PCIe Gen 4.0 support
  • DDR4-3200 memory support
  • 1S AMD EPYC Milan-X / Milan / Rome CPU
  • 16 DIMM slots supporting up to 4TB DDR4 RAM
  • 10 Front Hot-Swap 3.5" SATA 6G Drive Bays
  • 2 Front Hot-Swap U.2 NVMe Drive Bays
  • 2 Rear Hot-Swap 2.5" SATA Drive Bays
  • AST2500 BMC with Redfish support
SKU
B8036T65V10E4HR*
B8036T65V12E2HR-LE*

Specifications

Air Cooling
Fan
(3) 8cm fans
Storage SATA
Connector
(1) SFF-8654 for (8) SATA ports
Controller
Direct from AMD EPYC CPU
Speed
6Gb/s
RAID
N/A
Storage NVMe
Connector (M.2)
(2) 22110/2280 (by PCIe Gen 3 & SATA interface)
Connector (U.2)
(1) SFF-8654 for (2) NVMe ports
Notification
Certain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information.
I/O Ports
USB
(1) USB3.1 Gen.1 port (Type-A) / (2) USB3.1 Gen.1 ports (via Cable) / (2) USB3.1 Gen.1 ports (@ rear)
COM
(1) DB-9 port (COM1) + (1) header (COM2)
VGA
(1) D-Sub 15-pin port
RJ-45
(2) GbE ports + (1) dedicated GbE for IPMI
Storage Additional SATA
Connector
(2) 7-pin SATA for (2) rear SATA drives / (2) 7-pin SATA for (2) front SATA drives
Controller
Marvell 9235
Speed
6Gb/s
RAID
N/A
System
Form Factor
2U Rackmount
Dimension (D x W x H)
25.59" x 17.32" x 3.43" (650 x 440 x 87mm)
Chassis Model
TS65
Motherboard Name
S8036GM2NE-LE
Gross Weight
30 kg (66 lbs)
Net weight
19 kg (42 lbs)
Processor
#Notification
280W CPUs follow Tyan AVL
Q'ty / Socket Type
(1) AMD Socket SP3
Supported CPU Series
(1) AMD EPYC™ 7002/7003 (with AMD 3D V-Cache™ Technology) Series Processor
Thermal Design Power Wattage
Max up to 240W (cTDP)
Memory
Supported DIMM Qty
(16) DIMM slots
DIMM Type / Speed
DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
Capacity
Up to 2,048GB RDIMM / 4,096GB LRDIMM 3DS
Memory channel
8 Channels per CPU
Memory voltage
1.2V
Storage
Q'ty / Type
(12) 3.5 Hot-Swap HDD/SSDs (@ front) / (2) 2.5" Hot-Swap HDD/SSDs (@ rear)
Front Drive Bay Interface
(10) SATA 6Gb/s / (2) NVMe U.2
Front Drive Backplane Support
SAS 12Gb/s /SATA 6Gb/s /NVMe
Notification
The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact MiTAC technical support if a discrete SAS HBA/RAID adapter is required.
Rear Drive Bay Interface
(2) SATA 6Gb/s
Rear Drive Backplane Support
SATA 6Gb/s
PCIe Expansion Slots
Pre-installed TYAN Riser Card (PCIe Gen.4)
(1) M8036-L24-3F riser card for (2) FH/HL + (1) HH/HL PCIe Gen.4 x8 slots (left) / (1) M8036-R24-3F riser card for (2) FH/HL + (1) HH/HL PCIe Gen.4 x8 slots (right)
Others
(1) PCIe Gen 3 x16 OCP 2.0 slot (conn.A+conn.B) / *Conn. B of OCP 2.0 mezzanine is mux'd with the HH/HL PCIe x8 slot on M8036-R24-3F riser
Physical Dimension Abbreviation
FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm)
PCIe
(2) PCIe Gen 4 x8 slots (HH/HL w/tall bracket) / (4) PCIe Gen 4 x8 slots (FH/HL)
Front Panel
I/O Ports
(2) USB 3.1 Gen.1 ports
Buttons
(1) UID / (1) PWR w/ LED / (1) RST
LEDs
(1) HDD / (1) ID / (1) UID / (1) System Event
Networking
Q'ty / Port
(2) GbE ports + (1) GbE dedicated for IPMI
Controller
Broadcom BCM5720
PHY
Realtek RTL8211E
TPM (Optional)
TPM Support
Please refer to our TPM supported list.
Power Supply
Type
CRPS
Input Range
AC 100-127V/10A / AC 200-240V/5A
Frequency
50/60 Hz
Output Watts
800 Watts
Efficiency
80 plus Titanium
Redundancy
1+1
Graphic
Connector type
D-Sub 15-pin
Resolution
Up to 1920x1200
Chipset
Aspeed AST2500
System Monitoring
Others
Watchdog timer support
Chipset
Aspeed AST2500
Temperature
Monitors temperature for CPU & memory & system environment
Voltage
Monitors voltage for CPU, memory, chipset & power supply
LED
Over temperature warning indicator / Fan & PSU fail LED indicator
BIOS
Brand / ROM size
AMI / 32MB
Feature
Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S0, S5
Server Management
AST2500 iKVM Feature
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
Chipset
Aspeed AST2500
Operating Environment
Operating Temp.
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity
90%, non-condensing at 35° C
Regulation
FCC (SDoC)
Class A
CE (DoC)
Class A
RCM
Yes
CB/LVD
Yes
VCCI
Yes
OS Compatibility
OS supported list
Please refer to our compatibility support lists
RoHS
RoHS 6/6 Compliant
Yes
Package Contains
Barebone
(1) TS65-B8036 Barebone
Manual
(1) Quick Installation Guide
