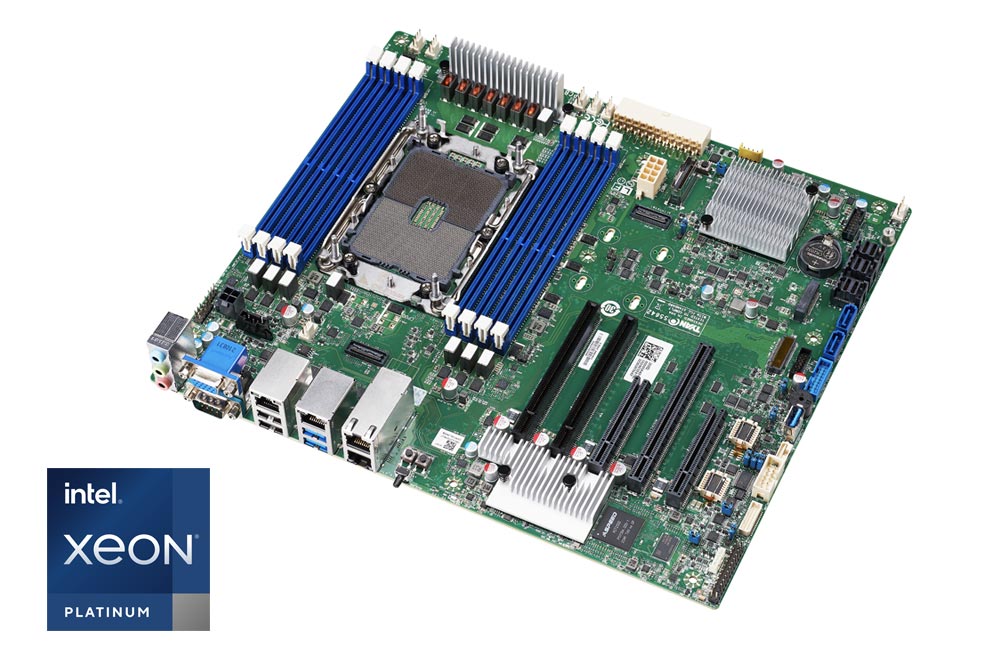

S5642
S5642AGMNRE
- 1S Intel Ice Lake SP CPU
- 12" x 10.6" SSI CEB FF
- 8 DIMM slots w/ DDR4-3200 memory support
- 3 PCIe Gen.4 x16 + 2 PCIe Gen.4 x8 slots
- 1 PCIe x8 SlimSAS connector (NVMe)
- 2 NVMe 22110 / 2280 M.2 slots
- 1 1000Base-T + 1 dedicate 1000Base-T IPMI ports
- AST2500 BMC with IPMI 2.0& Redfish support
| SKU |
|---|
| S5642AGM3NRE-2T* |
| S5642AGMNRE* |
Specifications
Storage SATA
- Connector
- (2) Mini-SAS HD (8 ports)
- Controller
- Intel C621A
- Speed
- 6Gb/s
- RAID
- RAID 0/1/10/5 (Intel RSTe)
Storage NVMe
- Connector (M.2)
- (2) 22110/2280 (by PCIe Gen.3 interface)
- Connector (U.2)
- (1) SFF-8654 for (2) NVMe ports
- Notification
- Certain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information.
Storage (Optional)
- VROC Support
- Yes
Graphic VGA
- Connector type
- D-Sub 15-pin
- Resolution
- Up to 1920x1200
- Chipset
- Aspeed AST2500
Input /Output
- USB
- (2) USB3.0 ports (via cable) / (2) USB3.0 ports ( @ rear) / (2) USB2.0 ports (@ rear)
- COM
- (1) DB-9 COM Connector
- RJ-45
- (1) GbE port + (1) GbE dedicated for IPMI
- Audio
- (1) 2x5-pin header / (1) 3 holes Audio Jack connector
- SATA
- (14) SATA-III ports from AHCI
- Front Panel
- (1) 2x12-pin SSI front panel header
- Power
- 8-pin power connectors
- VGA
- (1) D-Sub 15-pin VGA port (@ rear)
- Others
- (1) UID button
Physical Dimension
- Form Factor
- SSI CEB compatible
- Board Dimension
- 12” x 10.5” (305 x 267mm)
Operating System
- OS supported list
- Please refer to our AVL support lists.
Storage sSATA
- Connector
- (1) Mini-SAS (4-ports) / (2) 7-pin SATA for (2) SATA ports
- Controller
- Intel C621A
- Speed
- 6Gb/s
- RAID
- RAID 0/1/10/5 (Intel RSTe)
Processor
- Q'ty / Socket Type
- (1) LGA4189
- Supported CPU Series
- 3rd Gen Intel Xeon Scalable Processor
- Thermal Design Power Wattage
- Max up to 270W (TDP)
Memory
- Supported DIMM Qty
- (8) DIMM slots
- DIMM Type / Speed
- DDR4 ECC RDIMM /LRDIMM 3200
- Capacity
- Up to 1,024GB RDIMM/ 2,048GB LRDIMM/ 2,048GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
- Memory channel
- 8 Channels per CPU
- Memory voltage
- 1.2V
Chipset
- PCH
- Intel C621A
PCIe Expansion Slots
- PCIe
- (2) PCIe Gen.4 x16 slots (#5,#6) / (1) PCIe Gen.4 x8 slot (#4 w/x4 link) / (1) PCIe Gen.4 x16 slot (#3 w/x8 link) / (1) PCe Gen.4 x8 slot (#2 via MUX)
Networking
- Q'ty / Port
- (1) GbE port + (1) GbE dedicated for IPMI
- Controller
- Intel I210
- PHY
- Realtek RTL8211E
TPM (Optional)
- TPM Support
- Please refer to our TPM supported list.
Audio
- Chipset
- Realtek ALC888S
- Feature
- 2.1 ch
System Monitoring
- Others
- Watchdog timer support
- Fan
- Total (5) 4-pin headers
- Chipset
- Aspeed AST2500
- Temperature
- Monitors temperature for CPU, memory & system environment
- Voltage
- Monitors voltage for CPU, memory, chipset & power supply
- LED
- Over temperature warning indicator / Fan & PSU fail LED indicator
BIOS
- Brand / ROM size
- AMI / 32MB
- Feature
- Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / ACPI 6.2 / ACPI sleeping states S5 / SMBIOS 3.3/PnP/Wake on LAN
Server Management
- AST2500 iKVM Feature
- 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
- AST2500 IPMI Feature
- IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
- Onboard Chipset
- Onboard Aspeed AST2500
Operating Environment
- Operating Temp.
- 0° C ~ 40° C (32° F~ 104° F)
- Non-operating Temp.
- - 40° C ~ 70° C (-40° F ~ 158° F)
- In/Non-operating Humidity
- 90%, non-condensing at 35° C
Regulation
- FCC (SDoC)
- Class B
- CE (DoC)
- Class B
- RCM
- Class B
- VCCI
- Class B
RoHS
- RoHS 6/6 Compliant
- Yes
Package Contains
- I/O Shield
- (1) I/O Shield
- Cable
- (2) SATA signal cables
- Motherboard
- (1) S5642 Motherboard
- Manual
- (1) Quick Installation Guide
