S8030
S8030GM2NE
- Sustainable Supply in China only
- 1S AMD EPYC Milan-X / Milan / Rome CPU
- 12" x 9.8" ATX form factor
- 8 DIMM slots w/ DDR4 3200 memory support
- Up to 14 SATA ports
- 5 PCIe Gen.4 x16 slots
- 2 PCIe 4.0 x8 SlimSAS conn. for 4 NVMe U.2
- 2 NVMe M.2 22110 / 2280 slots
- 2 1000Base-T LAN + 1 dedicate 1000Base-T IPMI ports
- AST2500 BMC with IPMI v2.0& Redfish support
| SKU |
|---|
| S8030GM2NE* |

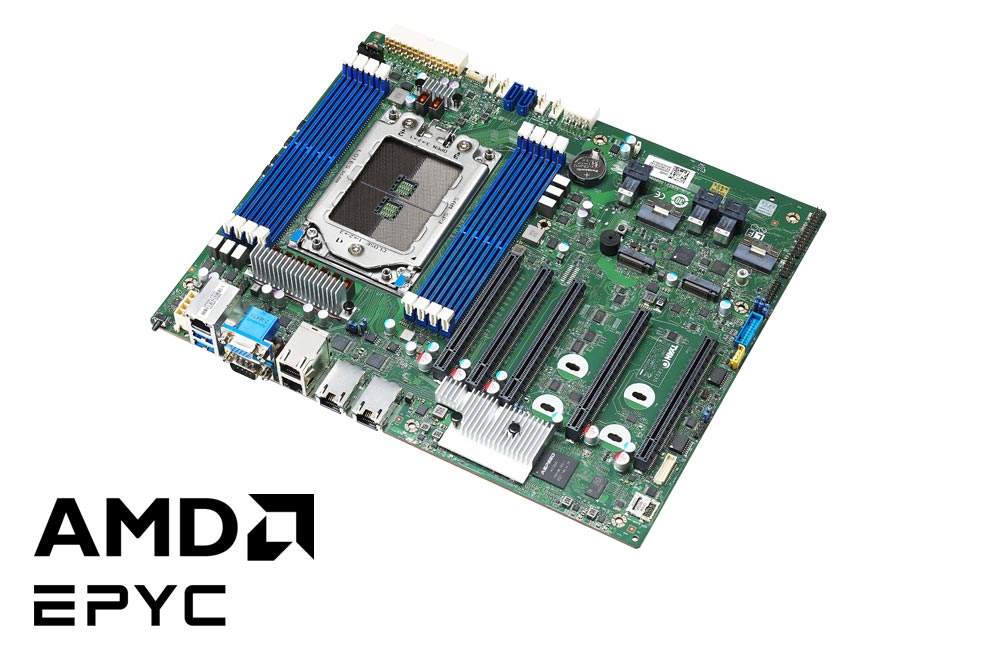

| S8030GM4NE-2T* |
Specifications
Storage SATA
- Connector
- (2) SATA / (3) SFF-8643 for (12) SATA ports
- Controller
- Direct from AMD EPYC CPU
- Speed
- 6Gb/s
- RAID
- N/A
Storage NVMe
- Connector (M.2)
- (2) 22110/2280 (by PCIe & SATA interface)
- Connector (U.2)
- (2) SFF-8654 for (4) NVMe ports
- Notification
- Certain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information.
Graphic VGA
- Connector type
- D-Sub 15-pin
- Resolution
- Up to 1920x1200
- Chipset
- Aspeed AST2500
Input /Output
- USB
- (2) USB3.2 Gen.1 ports (@rear)
- COM
- (1) header
- RJ-45
- (2) GbE ports + (1) GbE dedicated for IPMI
- SATA
- (2) SATA-III connectors / (12) SATA ports from (3) Mini SAS HD connectors
- Front Panel
- (1) 2x12-pin SSI front panel header + (2) 1x2 header
- Power
- ATX 24-pin + (2) 8-pin power connectors
- VGA
- (1) D-Sub 15-pin VGA port (@ rear)
Physical Dimension
- Form Factor
- ATX
- Board Dimension
- 12" x 9.9" (305 x 250.8mm)
Operating System
- OS supported list
- Please refer to our AVL support lists.
Processor
- Q'ty / Socket Type
- (1) AMD Socket SP3
- Supported CPU Series
- (1) AMD EPYC™ 7002/7003 (with AMD 3D V-Cache™ Technology) Series Processor
- Thermal Design Power Wattage
- Max up to 280W (cTDP)
Memory
- Supported DIMM Qty
- (8) DIMM slots
- DIMM Type / Speed
- DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
- Capacity
- Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS *Follow latest AMD DDR4 Memory POR
- Memory channel
- 8 Channels per CPU
- Memory voltage
- 1.2V
PCIe Expansion Slots
- PCIe
- (5) PCIe Gen.4 x16 slots
Networking
- Q'ty / Port
- (2) GbE ports + (1) GbE dedicated for IPMI
- Controller
- Intel I210
- PHY
- Realtek RTL8211E
System Monitoring
- Others
- Watchdog timer support
- Fan
- Total (5) 4-pin headers (MOA version) / Total (4) 4-pin headers (OOY version)
- Chipset
- Aspeed AST2500
- Temperature
- Monitors temperature for CPU, memory & system environment
- Voltage
- Monitors voltage for CPU, memory, chipset & power supply
- LED
- Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator
BIOS
- Brand / ROM size
- AMI / 32MB
- Feature
- Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S0, S5
Server Management
- AST2500 iKVM Feature
- 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
- AST2500 IPMI Feature
- IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
Operating Environment
- Operating Temp.
- 10° C ~ 35° C (50° F~ 95° F)
- Non-operating Temp.
- - 40° C ~ 70° C (-40° F ~ 158° F)
- In/Non-operating Humidity
- 90%, non-condensing at 35° C
Regulation
- FCC (SDoC)
- Class A
- CE (DoC)
- Class A
RoHS
- RoHS 6/6 Compliant
- Yes
Package Contains
- I/O Shield
- (1) I/O Shield
- Cable
- (2) SATA signal cables
- Motherboard
- (1) S8030 Motherboard
- Manual
- (1) Quick Installation Guide
